Identyfikacja wariantu#

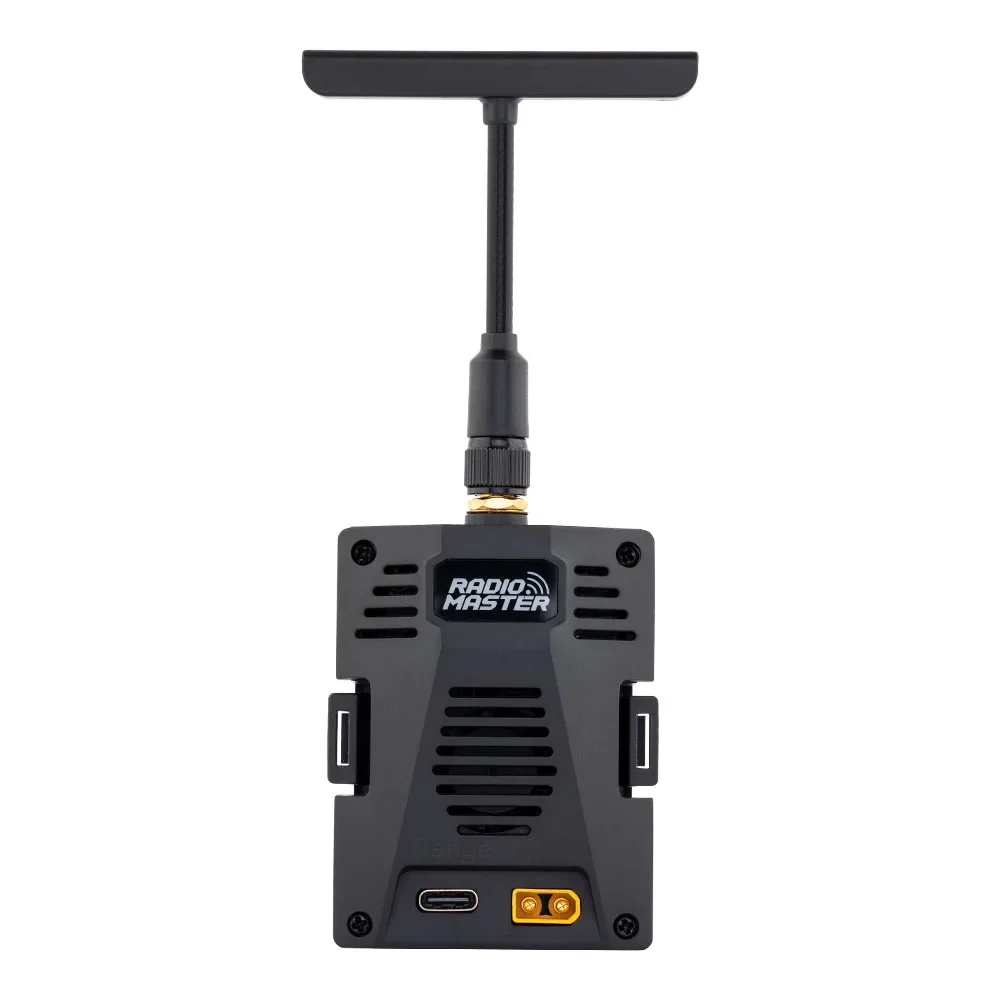

Nazwa modelu: Ranger ELRS 1W 2.4GHz Micro TX Module
MPN producenta: —
SKU podane przez sklep: RR1564
Typ produktu w katalogu sklepu: RC TX Module
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | RadioMaster |
| Connector | With Micro connector, supports TX16S MKII, TX16S MKII MAX and TX12 MKII radio and more. |
| Dimensions mm | 136*42*26mm (with T antenna) / 74*42*26mm (without antenna) |
| Frequency band | 2400 MHz - 2480 MHz |
| Input voltage v | DC 6V - 16.8V |
| Mass g | 48g (with antenna) / 39g (without antenna) |
| Mcu | ESP32(main), ESP8285(aux,as ESP backpack) |
| Output power mw | 30dBm for FCC, 20dBm for CE (Adjustable by LUA) |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| Rotor Riot | — | 47,99 USD |
