Identyfikacja wariantu#

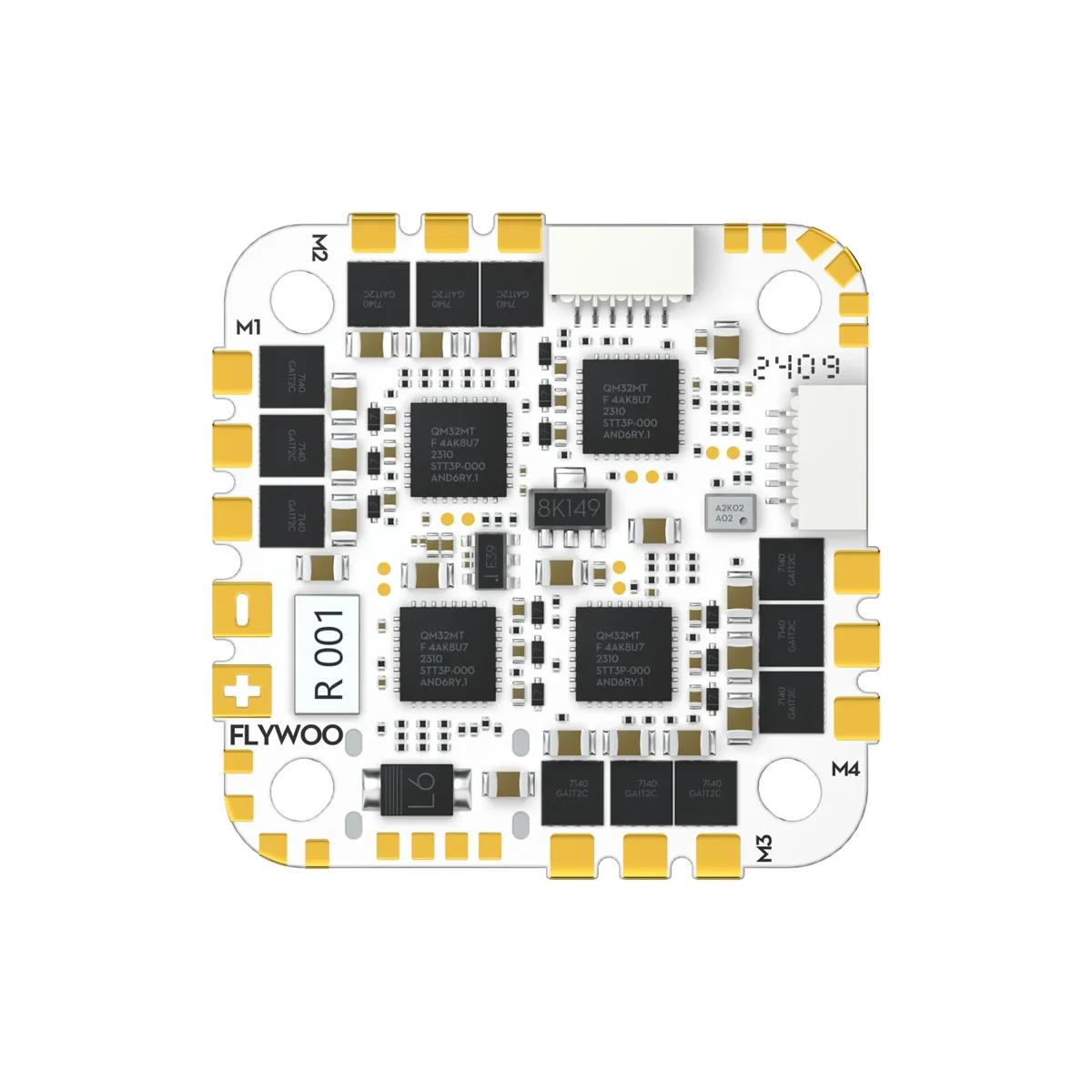

Nazwa modelu: Goku GN745 V3 2-6S 25x25 AIO Flight Controller with 45A 32bit ESC - AM32
MPN producenta: —
SKU podane przez sklep: FW19 00322 2
Typ produktu w katalogu sklepu: Flight Controller
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Flywoo |
| Barometr | SPL06 |
| Pamięć logów / blackbox | Onbord 16Mbytes for Blackbox logging |
| Connector | Compatible with O3 air unit, GPS, Camera, Analog VTX, and Receiver without the need for soldering. |
| Wymiary | 33.5x33.5mm |
| Firmware | GOKU_F4A32_PRO |
| Obsługiwane firmware | Firmware: GOKU_F4A32_PRO |
| Pamięć Flash MCU | MCU: STM32F745 32-bit processor,216MHz, 1MB Flash |
| IMU na płytce | ICM42688 |
| Napięcie zasilania modułu | 2-6S Lipo |
| Interface | Features a Type-C interface for improved compatibility and easier connection. |
| Masa | 9.4g |
| Główny mikrokontroler | STM32F745 32-bit processor,216MHz, 1MB Flash |
| Rozstaw montażowy | Standard 25.5/26.5mm square to center of holes |
| Liczba UART | Performance: Utilizes STM32F745 chip, AM32 firmware, and ICM42688 gyro, with dual BEC, barometer, black box, supports 7 serial ports and I2C. |
| Złącze USB | USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART) |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| Rotor Riot | — | 89,99 USD |
