Identyfikacja wariantu#

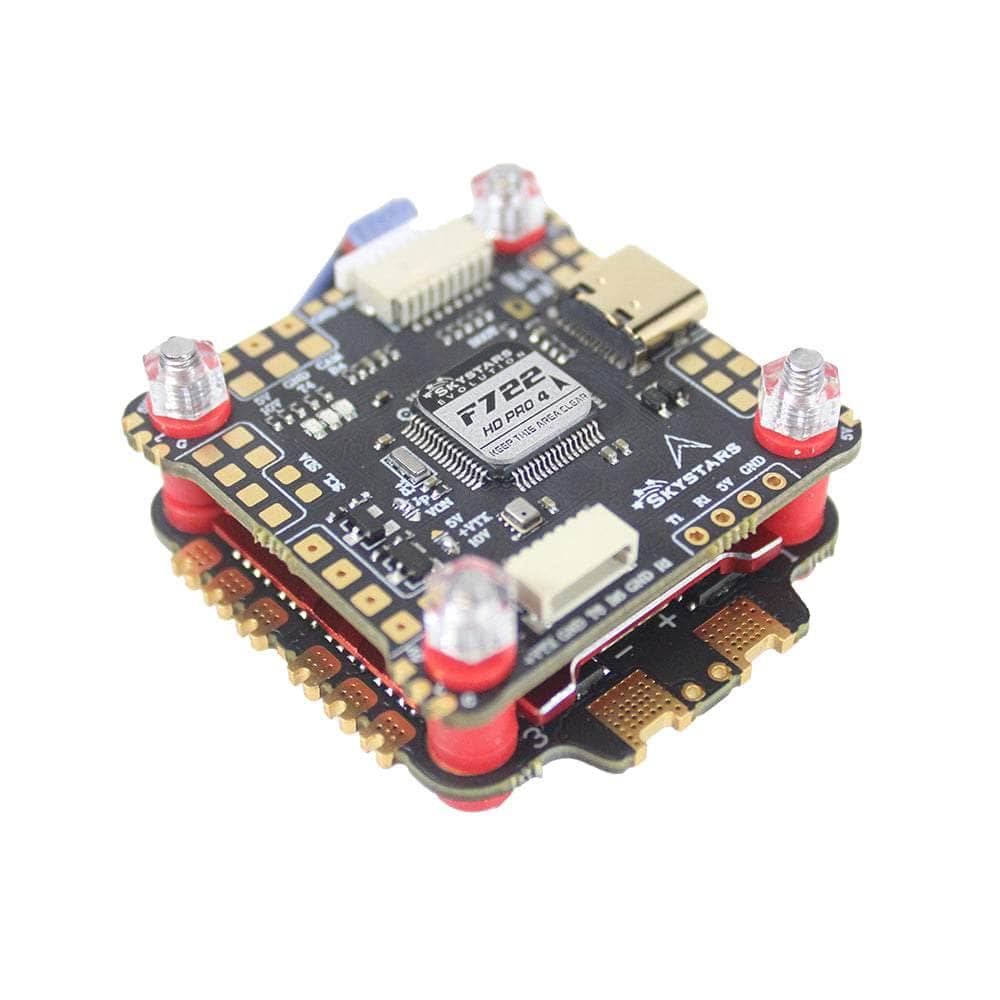

Nazwa modelu: SkyStarsRC F722 HD PRO4 3-6S 30x30 Stack/Combo (F722 FC / KM60 AM-32 32Bit 60A 4in1 ESC) - MPU6000
MPN producenta: —
SKU podane przez sklep: SKYS-SKY-150749
Typ produktu w katalogu sklepu: Stack
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Skystars |
| Liczba magistral CAN | Receiver: Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART. |
| Connector | 1x JST-SH1.0_6pin connector (10V/Gnd/TX6/RX6/Gnd/Sbus) |
| Wymiary | 30.5x30.5mm. The installation hole is M4 and supports shock column installation. |
| Firmware | SKYSTARSF722Pro |
| Obsługiwane firmware | Firmware: AM_32 |
| IMU na płytce | MPU6000 |
| Napięcie zasilania modułu | 3-6S LiPo |
| Masa | 6.9g |
| Materiał | Extreme stably support 6S LiPo battery: By use of 24 pcs of new Toshiba standard 40V 5x6 Mosfet & imported from USA or Japan electronic materials. Plus advanced lead-free SMT Processing technology. Making the ESC fully able to support a 6S battery and get a better performance. |
| Główny mikrokontroler | STM32F722RET6 216MHz |
| Wyjścia PWM / silnikowe | 4x PWM outputs |
| Liczba UART | UART 1/2/3/4/5/6 |
| Złącze USB | USB Type-C(USB2.0) |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| RaceDayQuads | — | 113,99 USD |
