Identyfikacja wariantu#

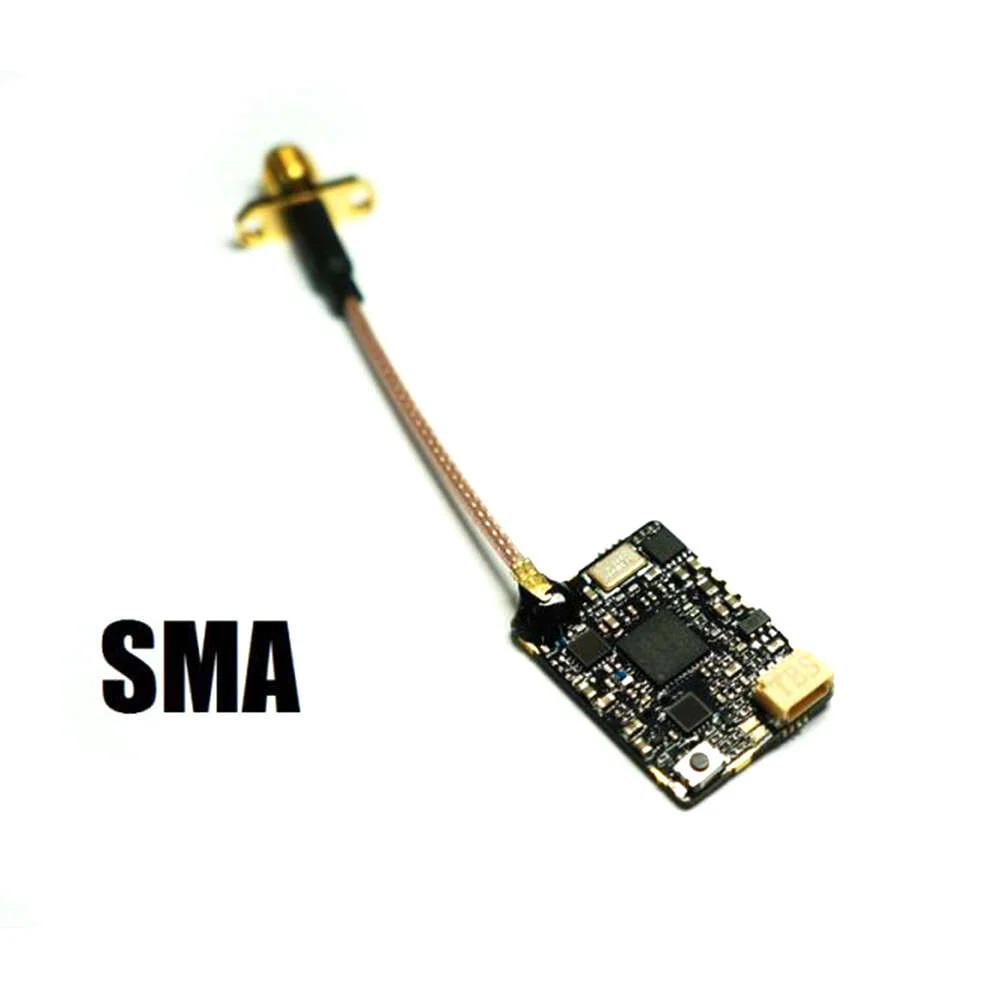

Nazwa modelu: TBS Unify Pro 5G8 V3 (SMA) VTx Video Transmitter
MPN producenta: —
SKU podane przez sklep: T2-4333
Typ produktu w katalogu sklepu: VTX
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | TBS |
| Connector | SMA Female Socket with screw mounting holes |
| Control protocol | FULL CONTROL |
| Frequency band | 6.5 MHz |
| Input voltage v | 4.5 - 5.5V |
| Mass g | 5g (with SMA, without antenna) |
| Operating temperature c | watch for normal airflow |
| Output power mw | 13dBm (25mW), 23dBm (200mW), 27dBm (500mW), 29dBm (800mW*) |
| Video system | NTSC/PAL |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| PyroDrone | — | 49,99 USD |
