Identyfikacja wariantu#

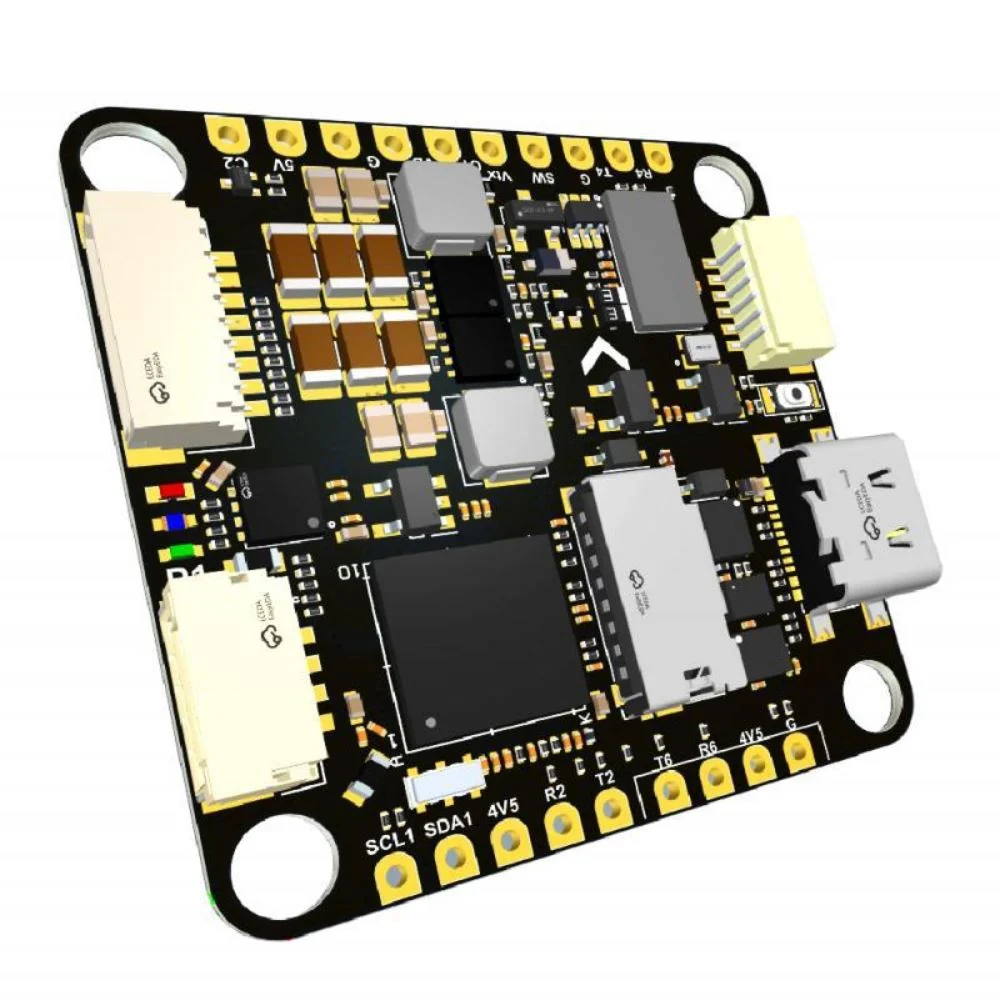

Nazwa modelu: TBS Lucid H7 FC 2-8S Dual Camera Input ICM42688 x 2 (duo gyro) Flight Controller - 30x30mm
MPN producenta: —
SKU podane przez sklep: L2-13833
Typ produktu w katalogu sklepu: Flight Controllers
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | TBS |
| Barometr | Infineon DPS310 connected via I2C2. |
| Pamięć logów / blackbox | Data logging equipped with a MicroSD card slot (SDIO) |
| Liczba magistral CAN | CAN Bus: 1 available. |
| Connector | 1x JST-SH1.0 8-pin (Vbat/G/Curr/Rx8/S1/S2/S3/S4) 1x JST-GH1.25 4-pin (5V/CAN-H/CAN-L/Ground). |
| Pamięć Flash MCU | MCU: STM32H743VIH6 running at 480MHz, with 1MB RAM and 2MB Flash. |
| Napięcie zasilania modułu | 6 - 36V (2 to 8S LiPo). |
| Interface | Type-C connector (USB 2.0 standard). |
| Główny mikrokontroler | STM32H743VIH6 running at 480MHz, with 1MB RAM and 2MB Flash. Gyro: ICM42688 x 2 (duo gyro) OSD Chip: AT7456E (SPI2) Barometer: Infineon DPS310 connected via I2C2. PWM Outputs: 13 channels, including a dedicated “LED” pad. Blackbox (BB): Data logging equipped with a MicroSD card slot (SDIO) UARTs: 7 total (1, 2, 3, 4, 6, 7, 8) signal inversion ready I2C Buses: 2 available. CAN Bus: 1 available. Analog Inputs: 6 ADC channels (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2). LED Indicators: 3 LEDs (Blue, Green for FC Status, Red for 3.3V Power). Breakout: SPI3 breakout available. USB Interface: Type-C connector (USB 2.0 standard). JST Connectors: 1x JST-SH1.0 8-pin (Vbat/G/Curr/Rx8/S1/S2/S3/S4) 1x JST-GH1.25 4-pin (5V/CAN-H/CAN-L/Ground). Dual Camera Input: Switchable inputs for two cameras. Power Control: Switch for filtered 5V/Vbat output power. DJI FPV OSD: Compatible via any spare UART port. Power Specifications Input Voltage: 6 - 36V (2 to 8S LiPo). BEC: 5V 2A continuous (3A max) & 9V 2A continuous (3A max) LDO 3.3V: Supports up to 200mA. Voltage Support: ADC Vbat2 pad supports up to 36V (1K:10K voltage divider). Power Consumption: 200mA @ 5V with Betaflight, 150mA @ 5V with ArduPilot. FC Firmware Targets ArduPilot: tba BetaFlight: tba INAV: tba Package Includes: TBS Lucid H7 FC FC-to-ESC cable (plug & play) DJI O3 cable (plug & play) 4pcs M3 rubber dampers 4pcs M3x8 screws |
| Wyjścia PWM / silnikowe | 13 channels, including a dedicated “LED” pad. |
| Pamięć RAM MCU | MCU: STM32H743VIH6 running at 480MHz, with 1MB RAM and 2MB Flash. |
| Liczba UART | 7 total (1, 2, 3, 4, 6, 7, 8) signal inversion ready |
| Złącze USB | USB Interface: Type-C connector (USB 2.0 standard). |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| PyroDrone | — | 74,99 USD |
