Identyfikacja wariantu#

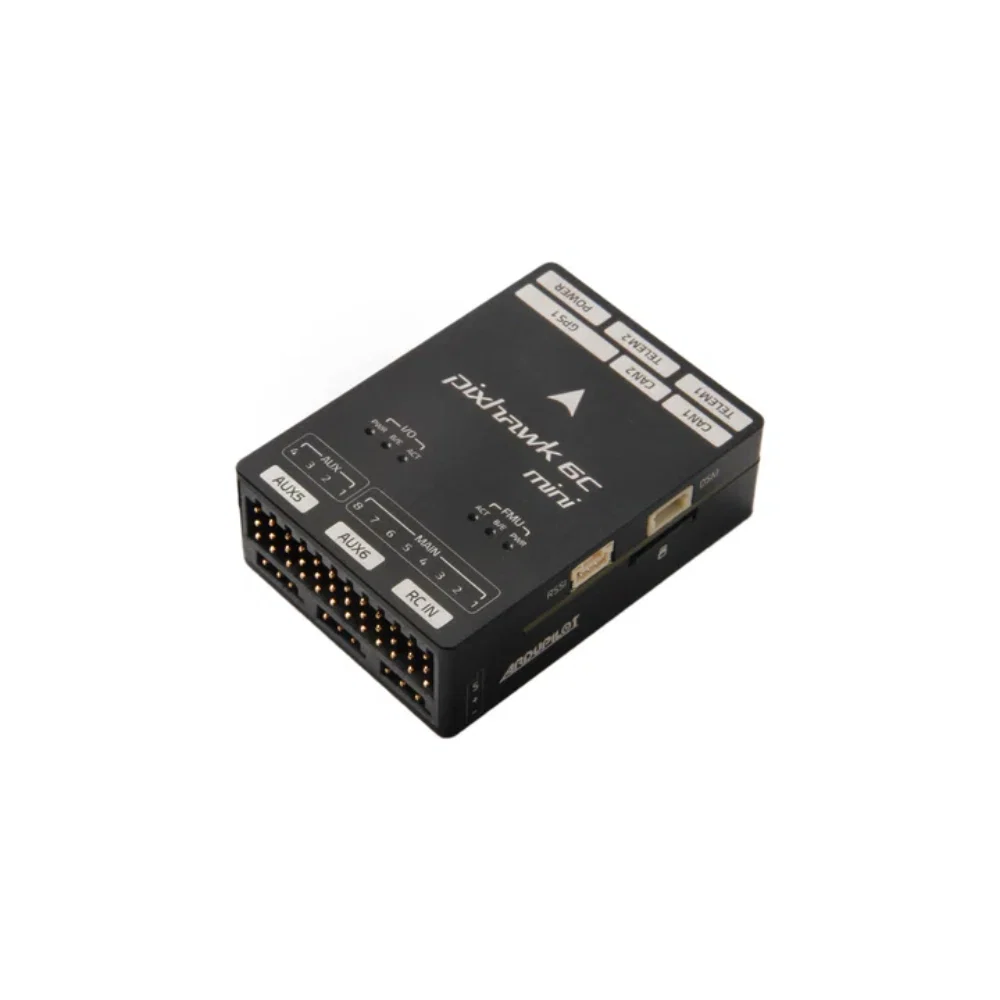

Nazwa modelu: Holybro Pixhawk 6C Mini Model-A Flight Controller only
MPN producenta: —
SKU podane przez sklep: J7-14520
Typ produktu w katalogu sklepu: Flight Controllers
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Holybro |
| Barometr | On-board sensors: Accel/Gyro: ICM-42688-P; Accel/Gyro: BMI088; Mag: IST8310; Barometer: MS5611 |
| Liczba magistral CAN | 2 |
| Connector | Complies with Pixhawk Connector Standard |
| Wymiary | 54.3 x 39 x 17.5 mm |
| Firmware | Supported by ArduPilot (Firmware sub-folder "Pixhawk6C") |
| Obsługiwane firmware | Supported by ArduPilot (Firmware sub-folder "Pixhawk6C") |
| Pamięć Flash MCU | FMU Processor: STM32H743 (32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM) |
| IMU na płytce | Redundant inertial measurement unit (IMU) from Bosch® & InvenSense®. |
| Napięcie zasilania modułu | 6V |
| Mikrokontroler I/O | IO Processor: STM32F103 (32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM) |
| Magnetometr | On-board sensors: Accel/Gyro: ICM-42688-P; Accel/Gyro: BMI088; Mag: IST8310; Barometer: MS5611 |
| Masa | 42.4g |
| Główny mikrokontroler | STM32H743 (32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM) |
| Operating temperature c | -40 ~ 85°C |
| Wyjścia PWM / silnikowe | 14 (8 from IO, 6 from FMU) |
| Pamięć RAM MCU | High-performance STM32H743 Processor with more computing power & RAM. |
| Liczba UART | 3 general purpose (TELEM1, TELEM2, GPS1, GPS2) |
| Złącze USB | USB Power Input: 4.75~5.25V |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| PyroDrone | — | 176,99 USD |
