Identyfikacja wariantu#

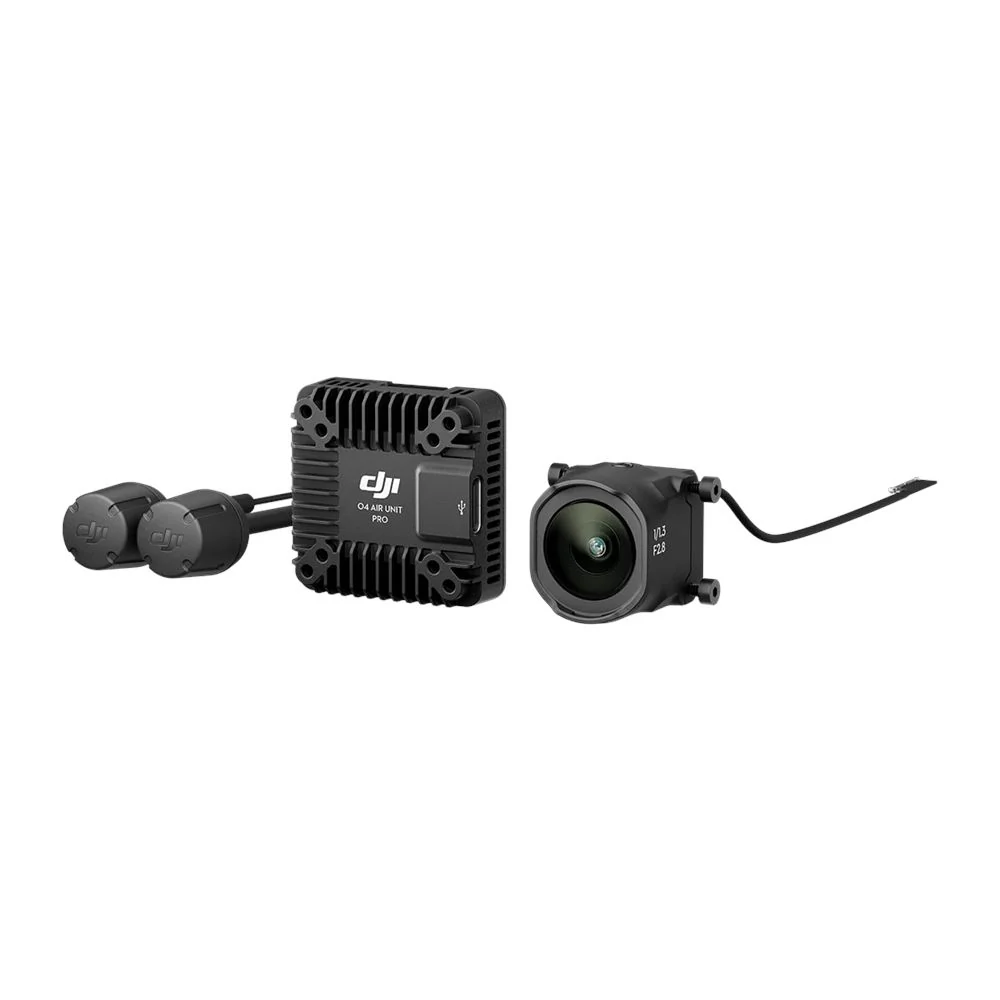

Nazwa modelu: DJI O4 Air Unit Pro - Digital Transmission System
MPN producenta: —
SKU podane przez sklep: G6-13884
Typ produktu w katalogu sklepu: VTX
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Drone Nerds |
| Channels | Supports auto and manual mode DJI Goggles 3/N3: 60 MHz: 1 channel 40 MHz: 1 channel 20 MHz: 3 channels 10 MHz: 3 channels DJI Goggles 2/Integra: 40 MHz: 1 channel 20 MHz: 3 channels 10 MHz: 3 channels |
| Dimensions mm | Transmission Module: 33.5 × 33.5 × 13 mm (L × W × H) Camera Module: 25.55 × 20 × 23.30 mm (L × W × H) Coaxial Cable: 140 mm 3-in-1 Cable: 100 mm Antenna: 110 mm |
| Firmware | DJI Goggles 2 / Goggles Integra + DJI FPV Remote Controller 2Note: The flight control firmware must support the SBUS protocol for using the DJI FPV Remote Controller. |
| Frequency band | 5.170-5.250 GHz 5.725-5.850 GHzNote: Operating frequency varies by region. Follow local regulations. |
| Input voltage v | 7.4-26.4 V |
| Mass g | Air Unit (camera module excluded): Approx. 15.6 g Air Unit (camera module included): Approx. 32 g Antenna: Approx. 2.1 g/pcs |
| Operating temperature c | -10°C to 40°C |
| Protocols | DJI Goggles 2 / Goggles Integra + DJI FPV Remote Controller 2Note: The flight control firmware must support the SBUS protocol for using the DJI FPV Remote Controller. |
| Video system | MP4 |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| PyroDrone | — | 289,00 USD |
